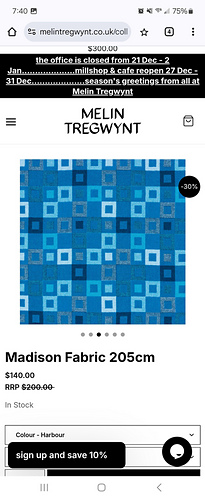

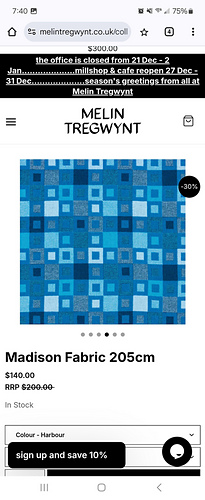

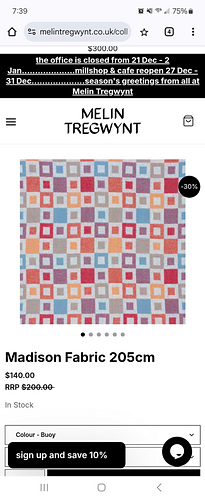

https://melintregwynt.co.uk/collections/throws-blankets/p...

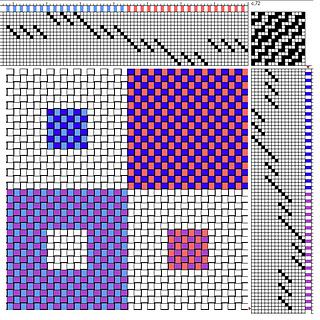

With this profile draft, this can be woven on 16 shafts.
This needs a layer of white and then stripes of red, yellow, and blue.

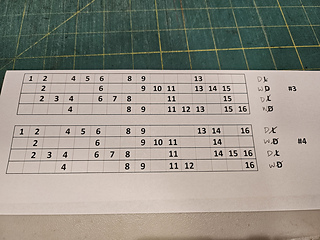

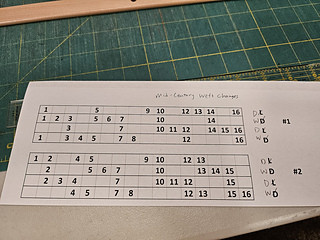

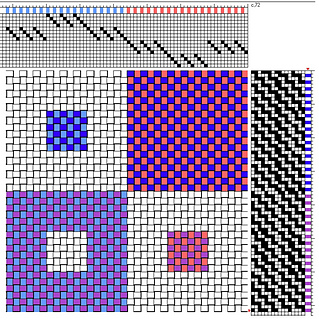

I used fiberworks to create the profile draft and then I used block substitution (under tools) to turn it into a 16 shaft draft. Then I used liftplan mode (in tie-up) to convert it into a table loom drawdown. Then I typed out the drawdown in excel but I’ll have to repeat the first 4 lines 3x and then repeat the sections like this:

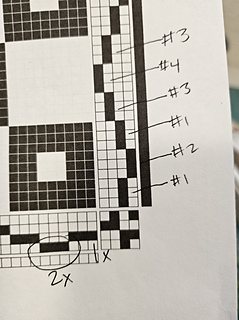

#1 (x3)
#2 (x3)
#1 (x3)
#3 (x3)
#4 (x3)
#3 (x3)

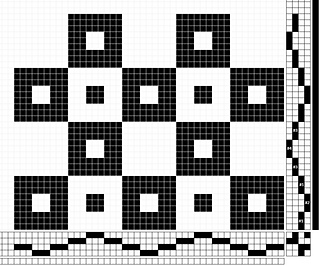

See the profile draft with labels for clarification!
Bluegrass Mills 6/2 cotton
EPI 15 for 1 layer, 30 for 2 layers
Each square is 36 threads across, so 18L, 18D
Each square will weave to be about 1.2”
Warp for 4 squares to practice
3 yard warp

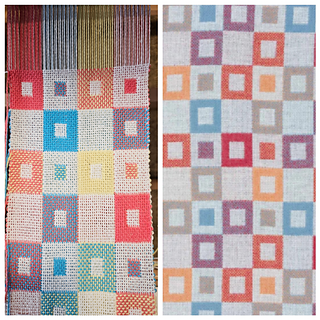

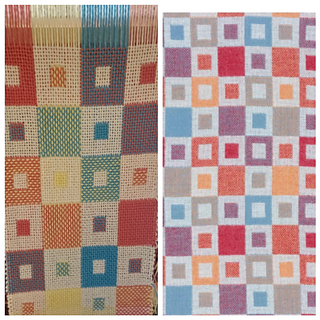

Edited: I tried this design and the colors were all wrong so I flipped the dark and light in the weft and now it works perfectly!!!! It looks just like the original!!!! Yay!!!
12-28-2024
Try warping all the colors and creating a rainbow. So 5 colors for a few rounds and then drop one and add one. It’s white weft and black as the main color.
12-29-2024
“Lock thread” by catching color thread under white thread on left for repeat #1,2 and right on #3,4

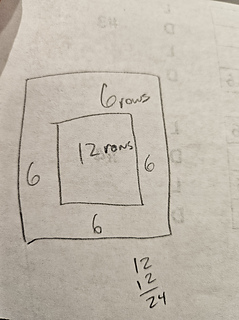

For final project, make the squares in the middle and little bit bigger than outside square.
Maybe open set just a tiny bit more. Like 14 epi on reed 8? Skip one dent?

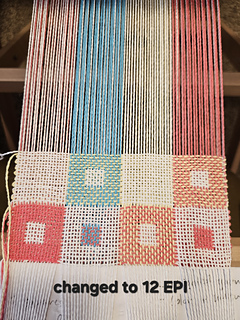

**Changed to 12 EPI (24 epi doubled)
12-30-2024
Maybe try rainbow?
R. Y. G. B. P. R. Y. G. B. P.
1. 2. 1. 2. 1. 2. 1. 2. 1. 2.
24 ends each block X 10 colors = 240 threads ÷ 12 epi = 20” across
01-01-2025
12 epi Sample before washing:
5.5”x19”
After washing:
5”x17”
10%-12% shrinkage
01-10-2025

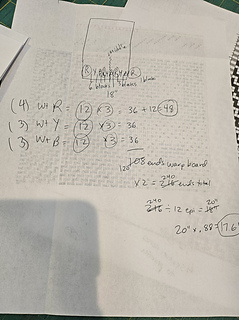

Going to make dishtowels! 10 blocks total. 4 red, 3 yellow, 3 blue

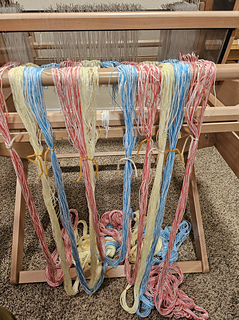

120 ends on the warp board
12 ends x 4 groups red
12 ends x 3 groups yellow
12 ends x 3 groups blue
120 ends x 2 = 240 ÷ 12 = 20” x .88 = 17.6” towels across
Each block will have 3 repeats on the sides and 6 in the middle.
4 yard warp
01-13-2025

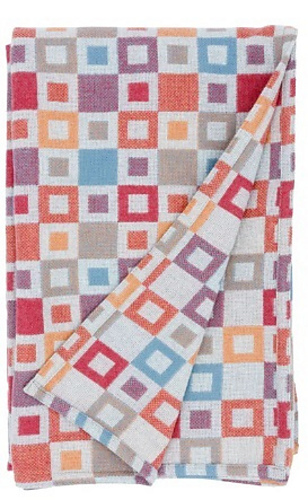

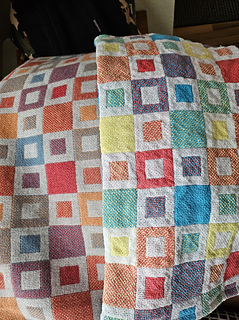

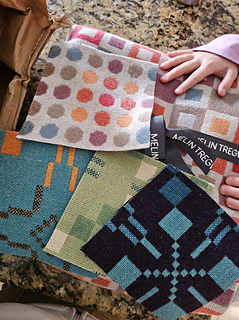

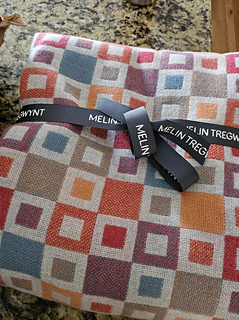

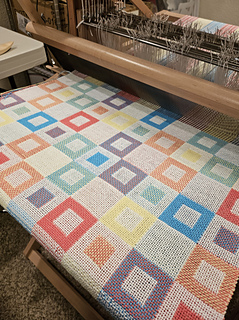

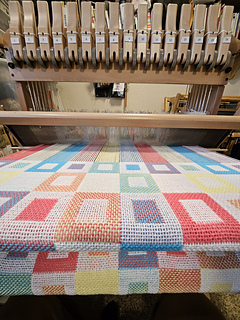

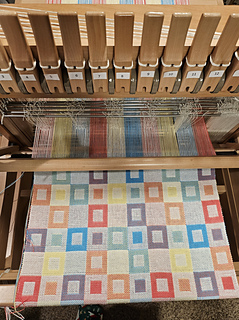

I started weaving my towel warp today! Also got my blanket in the mail! It looks just like my towels, but slightly different colors! I love this pattern so much!!!
The blanket came from England and was 50% off!!

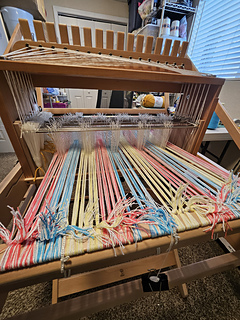

01-18-2025
Before washing 3 yards x 18.75”
01-19-2025

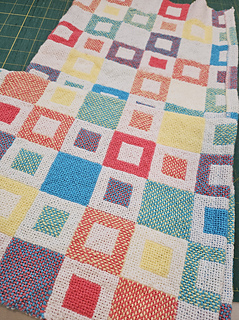

Washed 2 yards 20” x 16.5”
01-20-2025

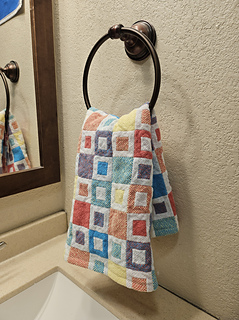

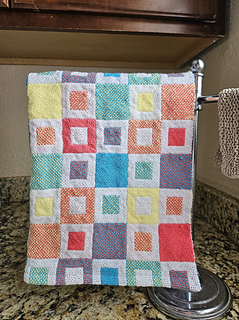

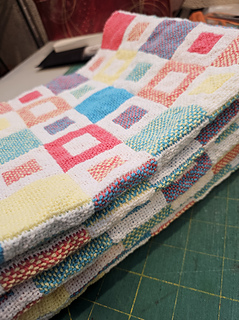

Finished the towels!! 4 towels 16.25” x 21.5”
I love the way they turned out!! Thick and thirsty!!
